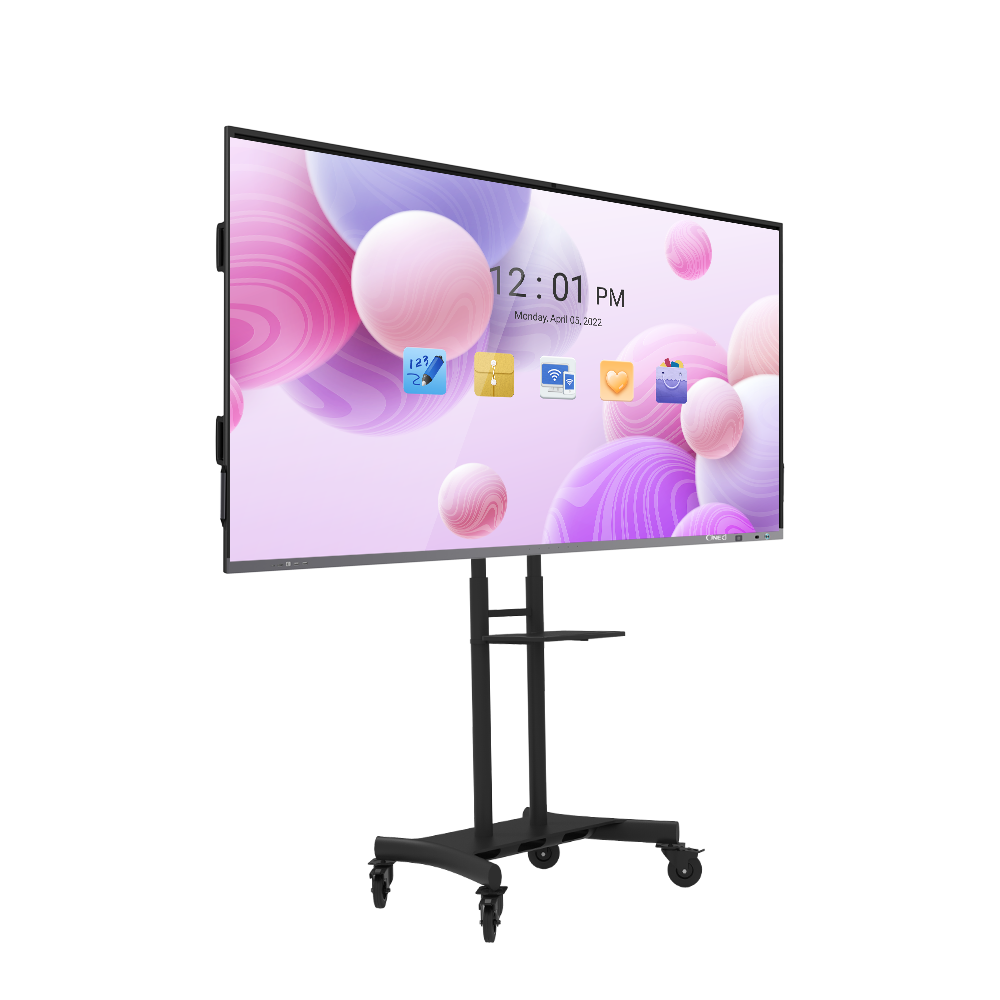

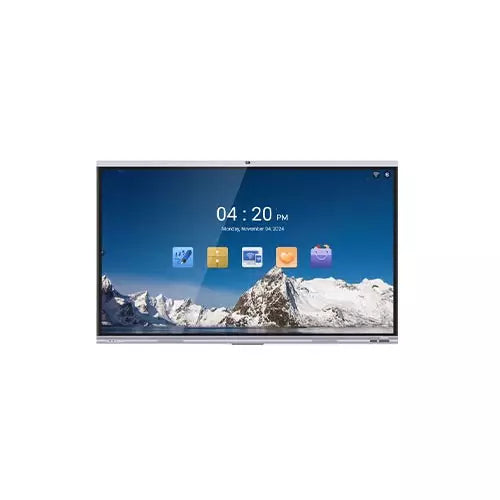

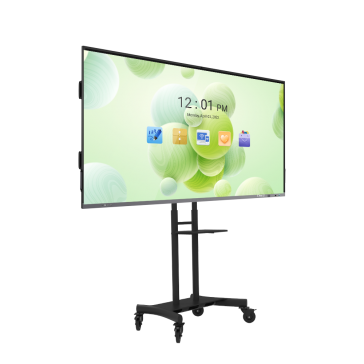

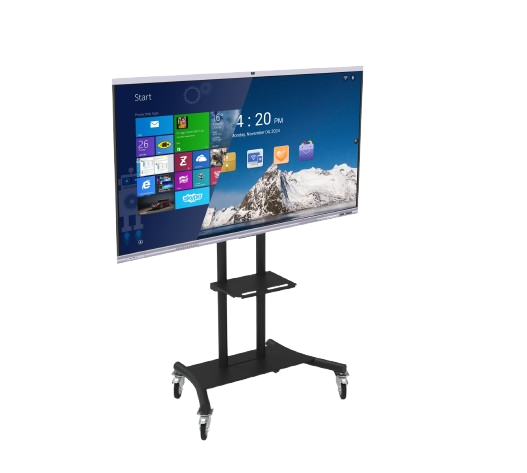

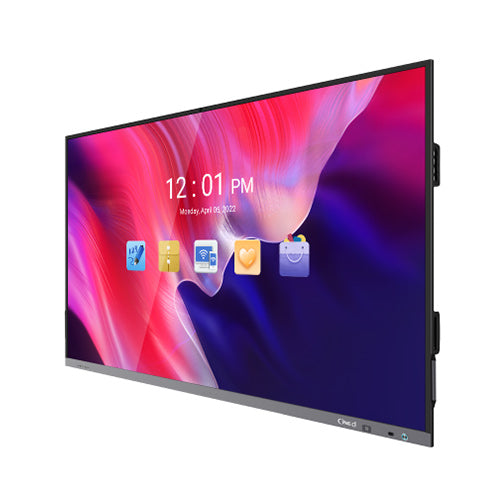

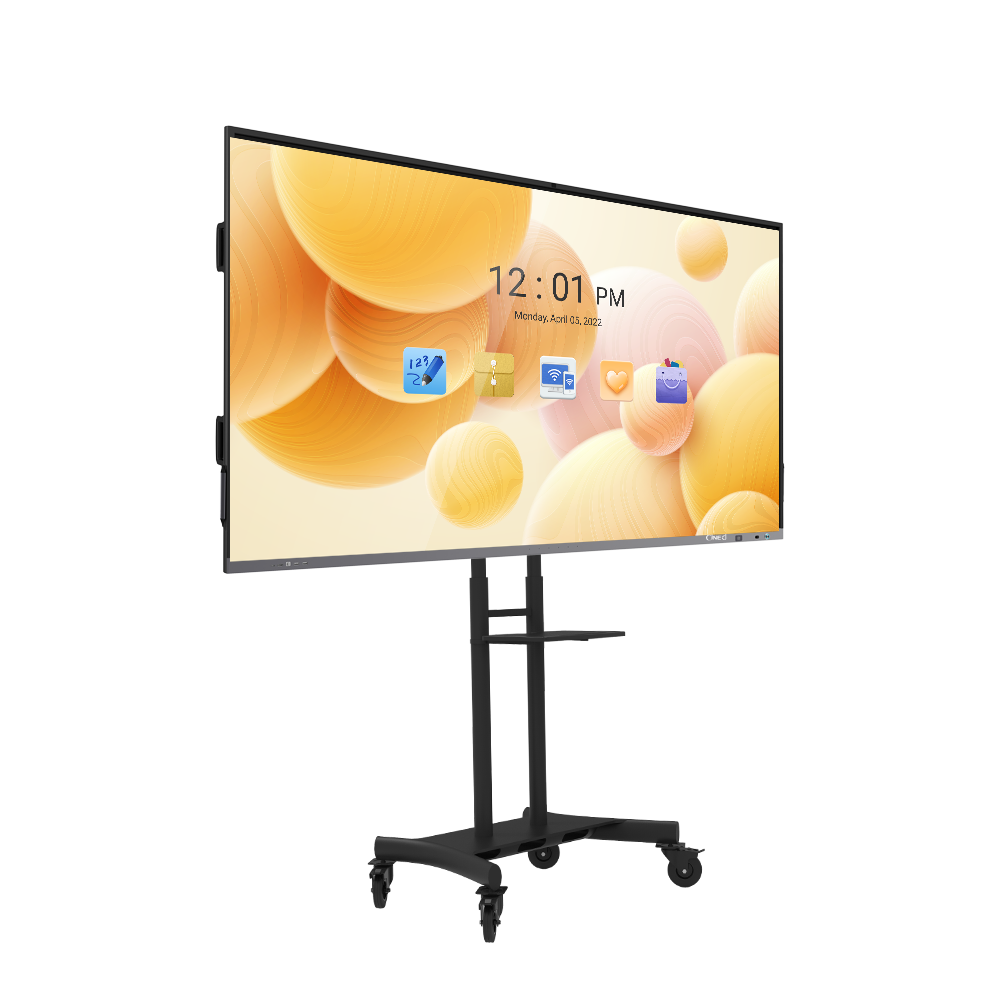

Details of Walton CiNEXA Interactive Display
Walton 65" MSRP ৳ 2,39,500
Walton 75" MSRP ৳ 3,25,750
Walton 86’ MSRP ৳ 3,88,500
Walton 98” MSRP ৳ 7,75,500
General
- Brand: CiNEXA
- Model: WSIZ65 (With Stand)
- Touch Technology: Infrared Touch Technology
Display
- Display Size: Inch
- Backlight Type: Direct LED
- Panel Type: IPS
- Resolution(pixels): 3840x2160 Pixels
- Brightness: 400cd/m² Typical
- Contrast Ratio: 1200:1 Typical
- Response Time: 8ms Typical
- Pixel Pitch(mm): 0.372(H)x0.372(V)
- Viewing Angle: 178°(H) / 178°(V)
- Life Time: 50,000 Hours Typical
- Color Gamut: 72% NTSC Typical
- View Area(mm): 1428.48(H)x803.52(V)
- Display Colors: 1.07B
- Refresh Rate: 60Hz
CPU
- Chipset: Amlogic A311D2
- Arm Architecture: Cortex A73+A53
- Frequency: Max 2.2GHz for Cortex A73 and 2.0GHz for A53
- Core: 4 x A73(Quad core A73)+4 x A53(Quad core A53)
- GPU: MaliG52 MP8
- RAM: 8GB DDR4
- ROM: 128GB eMMC Flash
- OS: Android 13
Audio
- Build in Speaker: Yes
- Speaker Details: 16W*2 Speaker+ 15W Subwoofer
- Audio In: Yes
- Audio Out: Yes
Array Mic
- Array Quantity: 8-mic
- Pick up Area: 8m
- AEC: Supported
- AGC: Supported
- Speech enhancement: Supported
Camera
- Build in Camera: Yes
- Camera : 48MP
NFC
- Standard: Supported
Front Interfaces
- Type -C: x1
- Public USB(USB3.0 TYPE A): x2
Rear Interfaces
- HDMI IN: x2
- DP IN: x1
- Type-C: x1
- VGA IN: x1
- AUDIO IN: x1
- LAN: x2
- USB2.0: x1
- USB3.0: x2
- TOUCH: x3
- MIC IN: x1
- SPDIF: x1
- RS232 IN: x1
- HDMI OUT: x1
- AUDIO OUT: x1
Connectivity
- Operating Frequency: 2.4GHz/5GHz
- Wi-Fi : Wi-Fi 6 (802.11ax)
- Bluetooth: 5.3
Touch
- Sensing Type: Infrared Touch Frame
- Surface Protection: 3.2mm Toughened Glass with Antiglare, Antifinger, Anti Biosis glass
- Infrared Touch: 20 Points Android
- Touch Accuracy: ±1mm
- Response Time: ≤10ms
Physical
- Product size (W*D*H) without Stand: 1482.1mm x 105.6mm x 936.7mm
- Wall Mounting (VESA): 600mm x 400mm
Electrical
- Power Requirements: AC100V~240V, 50-60Hz
- Power Consumption Without OPS: 300W
- Standby (Watt): < 0.5
- OPS Power : DC 18V , 5A
Accessories
- Remote Control: x1
- Touch pen: x2
- 3m power cable: x1
- 3m USB A-B cable : x1
- 3m HDMI cable: x1
- User manual: x1
Interactive Stand
- x1
Warranty
- Upto 1 Year Warranty
- - Panel: 1 Year
- - Android Motherboard: 1 Year
- - HDMI/VGA Cable: 1 Year
- - Other Parts(Without Stand): 1 Year
- - Remote, A2B & Power Cable: 6 Months
- - Note: This warranty does not cover any damage due to accident, electricity fault, natural causes, or negligence. And Authority keeps the power to change, expend, correct, stop or cancel the warranty period without any prior notice
